High speed full automatic ice lolly tube/bottle blowing machine

Brief Introduction

• The blowing machine is designed specially for making LDPE bottle/soft tube.
• The machine is composed of extruder, molds forming machine, bottle cooling conveyor and separating device. It has the reasonable structure, effective protection device and the noise is lower than 85db in the operation
• Rotary blowing mode ensures the machine can run in higher speed, more efficiency and better quality and defectives can lower to 0.6%.
• Famous brand of screen panel and PLC Electrical control system, higher control precision, faster response
• Converter(driver) ensures whole system operates stably and reliably
• The bottles are separated automatic by the separating device

Technical Data

• Capacity: 10000-13600pcs/h(weight of product: 1-4.5g)
• QTY of mould: 24
• Mould dimension: L290×W90×H100mm; Mould cavity: L270 ×W50 mm
• Product weight deviation: ±0.1g
• Voltage: 3-phrase, 4-wire, 380V/AC
• Total Power: 65KW
• Weight: 17.2Ton
• Dimension: L14.5×W2.6× H3.8 m

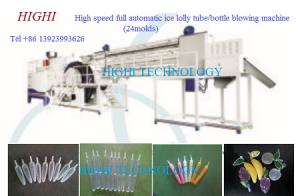

High speed full automatic ice lolly tube/bottle blowing machine Images
