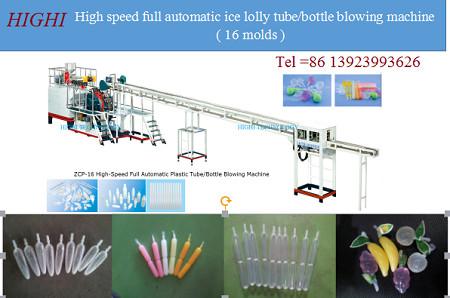

High speed full automatic ice lolly tube/bottle blowing machine

This machine is using multi-station vertical turning plate structure that can realize extruding, clamping, plastic blowing, forming, cooling, tube separating

Brief Introduction

The blowing machine is designed specially for making LDPE bottle/soft tube.

The machine is composed of extruder, molds forming machine, bottle cooling conveyor and separating device. It has the reasonable structure, effective protection device and the noise is lower than 85db in the operation

Rotary blowing mode ensures the machine can run in higher speed, more efficiency and better quality and defectives can lower to 0.6%.

Famous brand of screen panel and PLC Electrical control system, higher control precision, faster response

Converter(driver) ensures whole system operates stably and reliably

The bottles are separated automatic by the separating device

Technical Data

Capacity: 9000-10000pcs/h (weight of product: 1-4.5g)

QTY of mould: 16

Mould dimension: L290×W90×H100mm; Mould cavity: L270 ×W50 mm

Product weight deviation: ±0.1g

Voltage: 3-phrase, 4-wire, 380V/AC

lotal Power: 55KW

Weight: 10.5Ton

Dimension: L13.5×W2.2× H3.1 m
